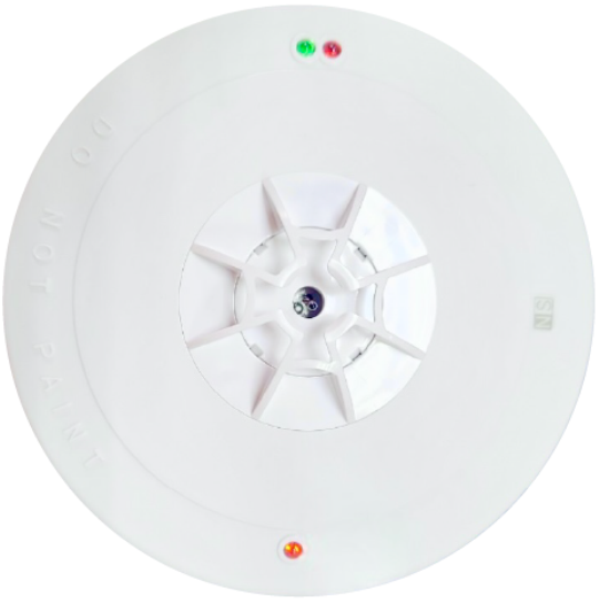

YDD-R301 Addressable Rate of Rise Heat Detector (with EOL)


Đặc trưng

  • Được trang bị đèn LED hiển thị ba trạng thái
  • Áp dụng công tắc DIP nhị phân dễ dàng cài đặt địa chỉ
  • Đèn chỉ thị x2, không có góc chết
  • Mở rộng thêm đầu báo thường không cần nguồn điện bên ngoài
  • Giám sát độc lập, thể hiện rõ trạng thái phát hiện
  • Chức năng kiểm tra bằng nam châm
  • Chứng nhận CE
  • Công nghệ đa truyền dẫn hai dây
  • Được trang bị các tiếp điểm cho đèn báo từ xa và chức năng rơle (tùy chọn)

Item

Specifications

Number of Sensitivity Settings

2 Type

Functions

  • According to the detection of the thermal components, when the temperature rises rapidly and reaches the pre-fire standard (action temperature), it responds quickly and sends the fire signal

Activating Temperature

Room Temp: +30℃ within 30seconds

Working Environment

0℃-50℃ Relative humidity of below 95%

Surface-mount Dimensions

ф 114.1 x46.4(H)mm

Ceiling Mount Dimensions

ф 140 x52.6(H)mm,

              installation holeф120mm

Dust proof/Water proof grade

IP44 waterproof base (optional)

R-type-designated E.O.L

terminal capacitor (not resistor)
